Butterfly Valves

Butterfly Valves made of cast iron, ductile iron, carbon steel, stainless steel with various seats and discs for different mediums.

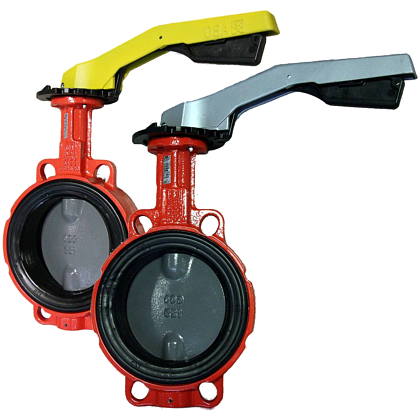

Wafer Butterfly Valve type ABO series 600 PN 6,10, 16

Wafer Butterfly Valve type ABO series 600 PN 6,10, 16

Wafer Butterfly Valve with EPDM seat for water heating system etc. NBR seat for gases, hydrocarbons, oils, air with oil content, sea water etc.  More information

  • Connectionwafer
  • Operatinghand lever, electric or pneumatic actuator
  • Materialcast iron GG-25
  • DN (mm)32 - 150
  • P (bar)6, 10, 16
  • T min (°C)-10°C
  • T max (°C)130°C
  • Catalog sheet

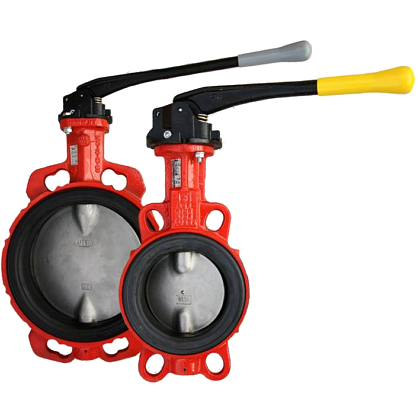

Butterfly Valves type ABO series 900 PN 6, 10, 16

Butterfly Valves type ABO series 900 PN 6, 10, 16

Wafer Butterfly Valve with various material of seat and disc for water, gases, oils, air with oil content, sea water etc and odher chemical products.  More information

  • Connectionwafer, flange
  • Operatinghand lever, manual gear, electric and pneumatic actuator
  • MaterialDuctile iron GGG-40
  • DN (mm)32 - 600
  • P (bar)6, 10, 16
  • T min (°C)-25°C
  • T max (°C)200°C
  • Catalog sheet
Wafer Butterfly Valve type BFV 306 CRX PN 6,10, 16

Wafer Butterfly Valve type BFV 306 CRX PN 6,10, 16

More information
  • Connectionwafer
  • Operatinghand lever, electric and pneumatic actuator
  • MaterialGG25, GGG40 / SS steel, nickeled GGG40
  • DN (mm)50 - 300
  • P (bar)6, 10, 16
  • T min (°C)-25°C
  • T max (°C)125°C
  • Catalog sheet

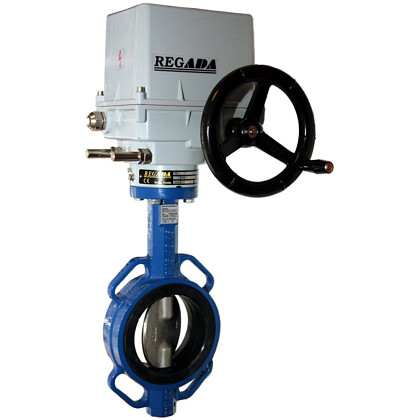

Butterfly Valve with electric actuator BFV 306 CRX PN 6,10, 16

Butterfly Valve with electric actuator BFV 306 CRX PN 6,10, 16

More information
  • Connectionwafer
  • Operatingelectric actuator
  • MaterialGG25, GGG40
  • DN (mm)50 - 300
  • P (bar)6, 10, 16
  • T min (°C)-25°C
  • T max (°C)125°C
  • Catalog sheet

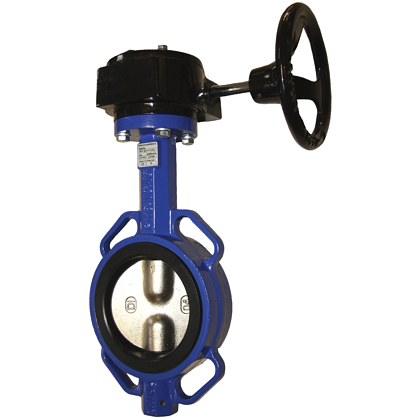

Butterfly valve with gearbox type BFV 306 CRX PN6, 10, 16

Butterfly valve with gearbox type BFV 306 CRX PN6, 10, 16

More information
  • Connectionwafer, lug
  • Operatinggearbox with handwheel
  • MaterialGG25, GGG40
  • DN (mm)50 - 600
  • P (bar)6, 10, 16
  • T min (°C)-25°C
  • T max (°C)125°C
  • Catalog sheet

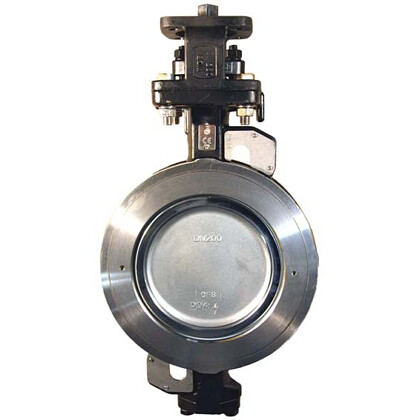

Double offset soft sealing butterfly valves BFV 800, 801 CRX

Double offset soft sealing butterfly valves BFV 800, 801 CRX

More information
  • ConnectionWafer, LUG
  • OperatingHand lever, Gearbox with handwheel, el.+ pneu actuators
  • Material1.0619, CF8, CF8M
  • DN (mm)50 - 900
  • P (bar)16, 40
  • T min (°C)-27°C
  • T max (°C)260°C
  • Catalog sheet
