Ball Valves

Ball Valves made of cast iron, ductile iron, carbon steel, stainless steel, soft and metal sealing.

Flanged Ball Valves K85.1 CRX 111 616 PN16

Ball Valves for water, hot water and non aggressive liquids hand lever operated. Third flange ISO 5211 for electric or pneumatic actuator. More information

ConnectionFlanged
OperatingHand lever, gearbox with hand lever, electric / pneumatic actuator
MaterialGG25 grey iron, GGG40 ductile iron
DN (mm)25 - 200
P (bar)16
T min (°C)-10°C
T max (°C)160°C
Catalog sheet

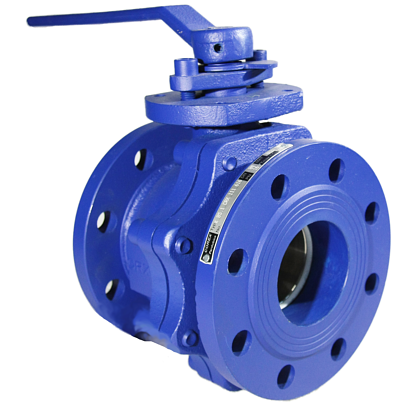

Flanged Ball Valve K85.1 CRX 111 516 DIN / CSN PN16

Flanged ball Valve for water, hot water, non aggrressive steam, oils and petroleum products. Third flange ISO 5211 equipped. More information

ConnectionFlanged
OperatingHand lever, gearbox with hand wheel, electric / pneumatic actuator
Materialcast steel 1.0619
DN (mm)15 - 150
P (bar)16
T min (°C)-27°C
T max (°C)230°C
Catalog sheet

Flanged Ball Valve K85.1 CRX 111 540 PN40

Ball Valve for non aggressive liquids - water, hot water, steam , mineral oils, petroleum products and gases. More information

ConnectionFlanged
OperatingHand lever, gearbox with hand wheel, electric / pneumatic actuator
Material1.0619
DN (mm)15 - 150
P (bar)40
T min (°C)- 27°C
T max (°C)230°C
Catalog sheet

Flanged Ball Valve made of Stainless Steel K85.1 CRX 111 016 PN16

More information

ConnectionFlanged
OperatingHand lever, gearbox with hand wheel, electric / pneumatic actuato
MaterialStainless steel CF8M
DN (mm)15 - 150
P (bar)16, 40
T min (°C)-50°C
T max (°C)200°C
Catalog sheet

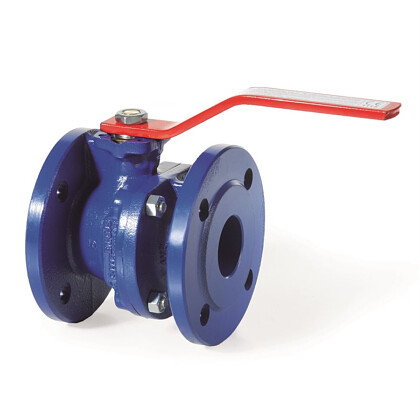

Ball valve for liquids type 02.000 and H2.100 PN16

Ball valve made of cast iron and ductile iron for non aggressive liquids and drinking water operate by hand lever, equipped with flange ISO 5211 for actuators. More information

Connectionflange
Operatinghand lever, electric / pneumatic actuator
MaterialGG-25, GGG-40
DN (mm)15 - 200
P (bar)16
T min (°C)-20°C
T max (°C)150°C
Catalog sheet

Flanged Ball Valve for gases type 02.100 PN16

More information

Connectionflange
Operatinghand lever, electric or pneumatic actuator
Materialductile iron GGG-40
DN (mm)20 - 150
P (bar)16
T min (°C)-10°C
T max (°C)70°C
Catalog sheet
